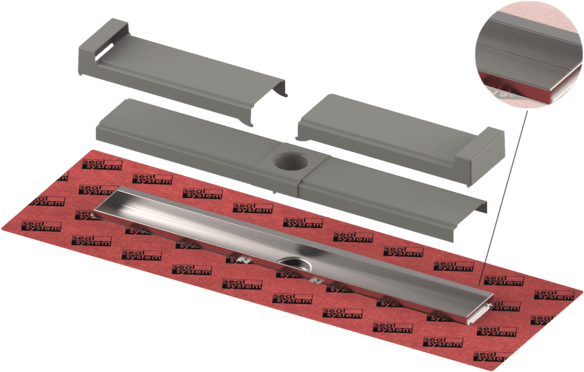

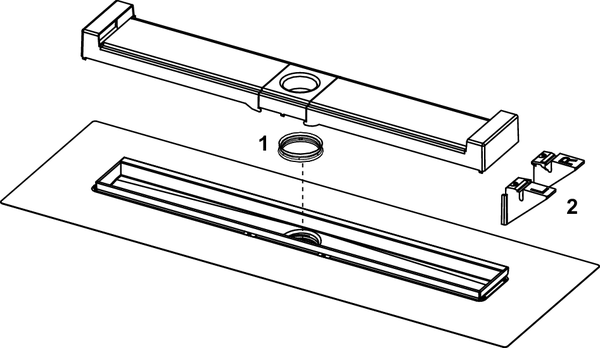

TECEdrainline-Evo shower channel with wall tile support Straight stainless steel channel body including factory fitted Seal System sealing sleeve with protective construction cover for installation on the wall in the screed, for creating a DIN 18534 compliant connection of the TECEdrainline shower channel to the composite seal. Consisting of: Continuously closed channel body made of polished stainless steel, material 1.4301 (304) with wall tile support Anti-capillary edge to avoid water penetrating under the tiles via capillary action Anti-backflow secondary drainage via glass fibre enhanced plastic hard shell Factory-fitted Seal System sealing sleeve for installation by the customer in the liquid or strip composite seal Protective cover with seal of originality for stainless steel channel and Seal System sealing collar Recess for mounting of optional assembly feet and for anchoring in the screed Levelling points (left and right) for clipping and forming a wider screed drip edge for easier levelling Central channel support to connect the drain Internal gradient for improved water drainage and self-cleaning effect Sound insulation strips Immersion pipe seal Optional secondary drainage Item number: 601003
