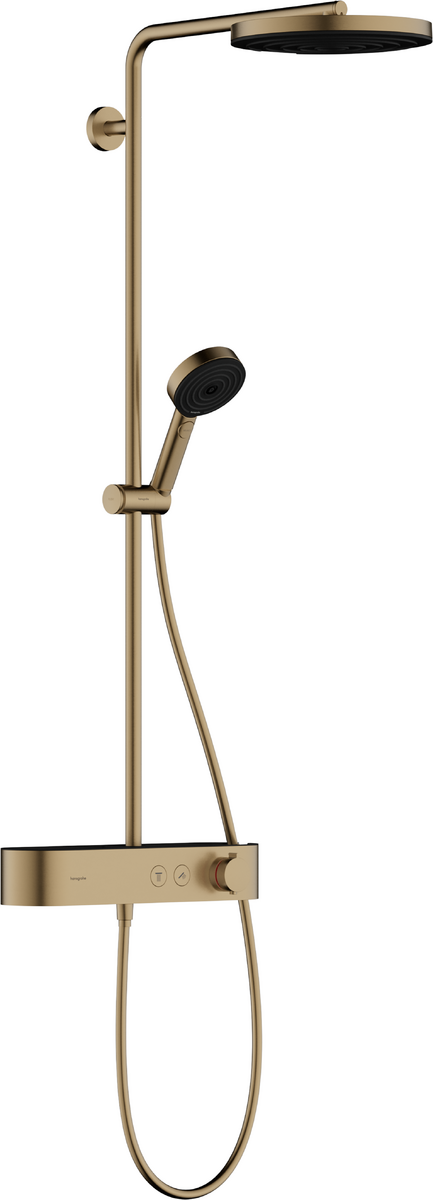

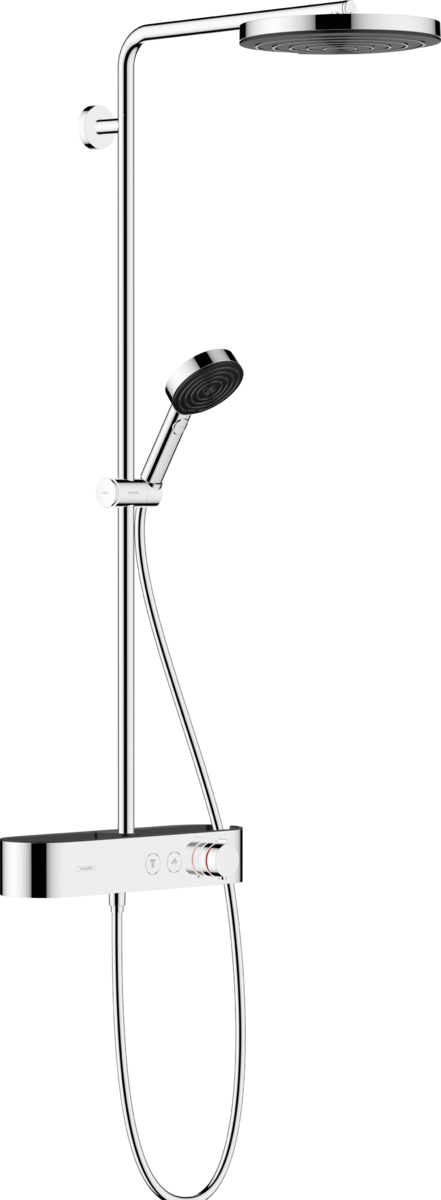

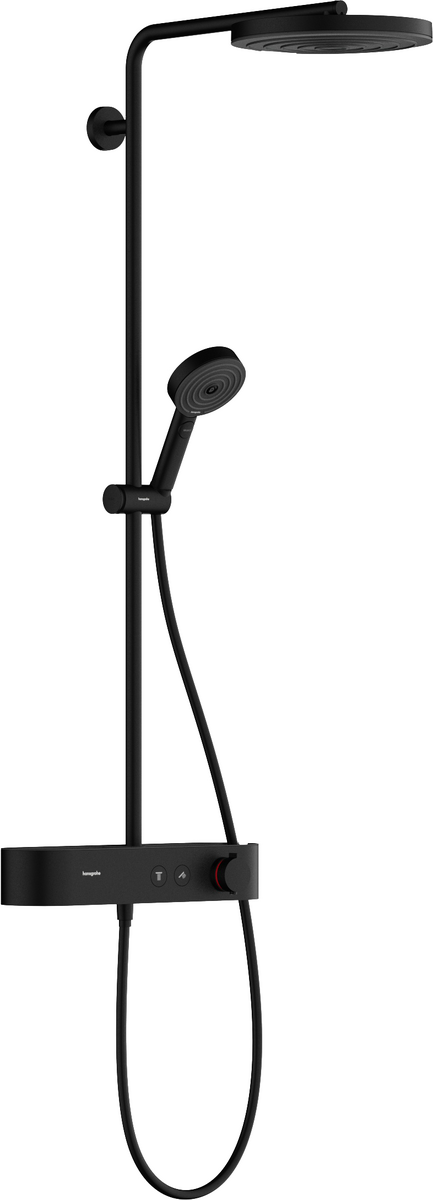

consists of: overhead shower, hand shower, shower thermostat, shower bar, slider, shower hose
overhead shower Pulsify 260 1jet
shower head size overhead shower: 260 mm
spray type overhead shower: PowderRain
ball-joint: overhead shower angle adjustable
spray disc surface: graphite
Fast Drain empties the overhead shower from an angle of 10°
removable shower head
shelf made of plastic
surface shelf: graphite
maximum flow rate at 3 bar: 10,9 l/min
spray type hand shower: PowderRain, IntenseRain, Massage spray
minimum flow pressure: 1,2 bar
max. operating pressure: 10 bar
pipe can be shortened in height
shower bar diameter: 22 mm
height-adjustable slider with locking push-button slider
shower arm length overhead shower: 398 mm
swivel shower arm
CoolContact thermostat: Prevents the housing from heating up, making showering even safer
thermostat ShowerTablet Select 400
safety stop at 40°C
adjustable hot water limitation
convenient diversion via Select button
simultaneous utilization of 2 functions
suitable for continuous flow water heaters
mounting type: exposed installation
connection thread G ½
centre distance 150 ± 12 mm
intrinsically safe against backflow
Thermostat is delivered with buttons hand shower and overhead shower
2 functions
