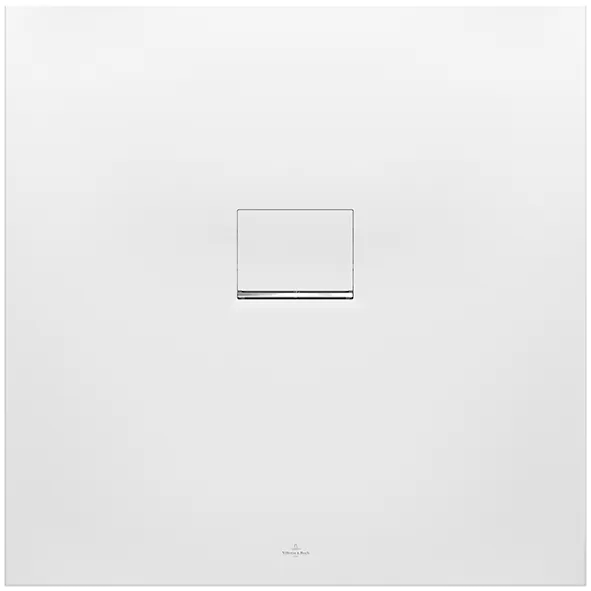

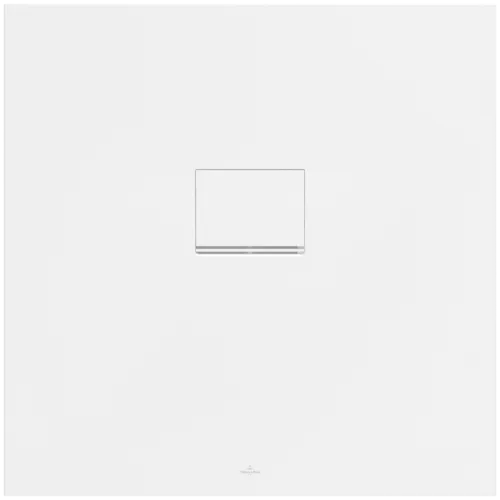

Article title: Villeroy & Boch Squaro Infinity Square shower tray, 900 x 900 x 40 mm, Stone White
Article number: UDQ9090SQI1V-RW
Assembly / Assembly type: flush-fitting installation, Installation on tiles|Installation on a base
Assembly instructions: The installation height of the shower tray can be reduced by 30 mm if the Viega outlet fitting art. no. 634 100 is used. Please note: this outlet fitting does not conform to EN 274., Quaryl shower trays can be cut to size on site in accordance with the installation instructions; see pro.villeroy-boch for a detailed video.
Drainage rate in l/min: 48

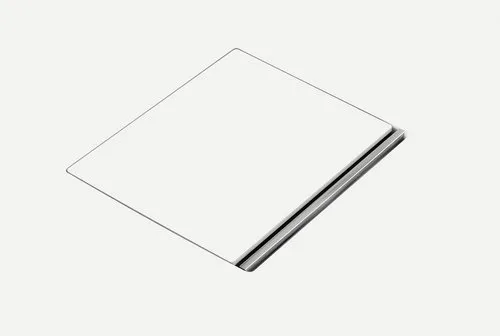

Scope of delivery: 1 x square shower tray , 1 x outlet cover in matching matt colour with chrome-plated strip
Ordering information: Supplied without support frame / base.
Length in mm: 900
Width in mm: 900
Height in mm: 40
Interior depth: 15
Collection: Squaro Infinity
Weight in kg: 21.6
Material: Quaryl®
Colour name : Stone White
With feet/base: No
Other material: Outlet cover: Acrylic
Other surfaces: Outlet cover: matt
With bath support: No
Anti-slip class: Anti-slip class C
EAN number: 4051202852641
Model number: UDQ9090SQI1V
